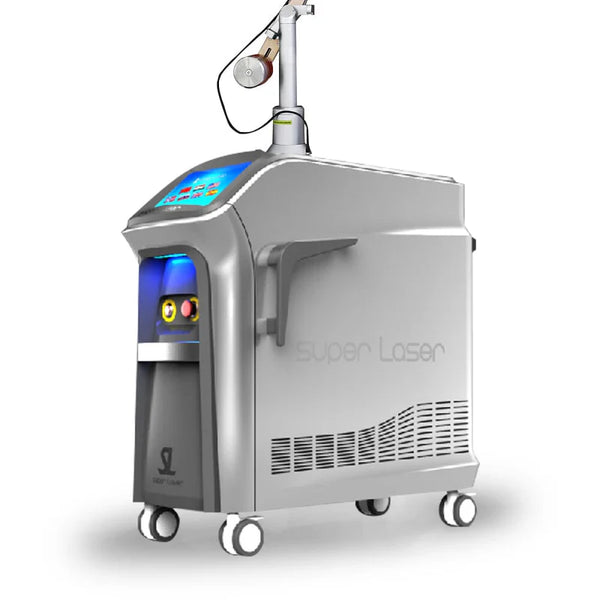

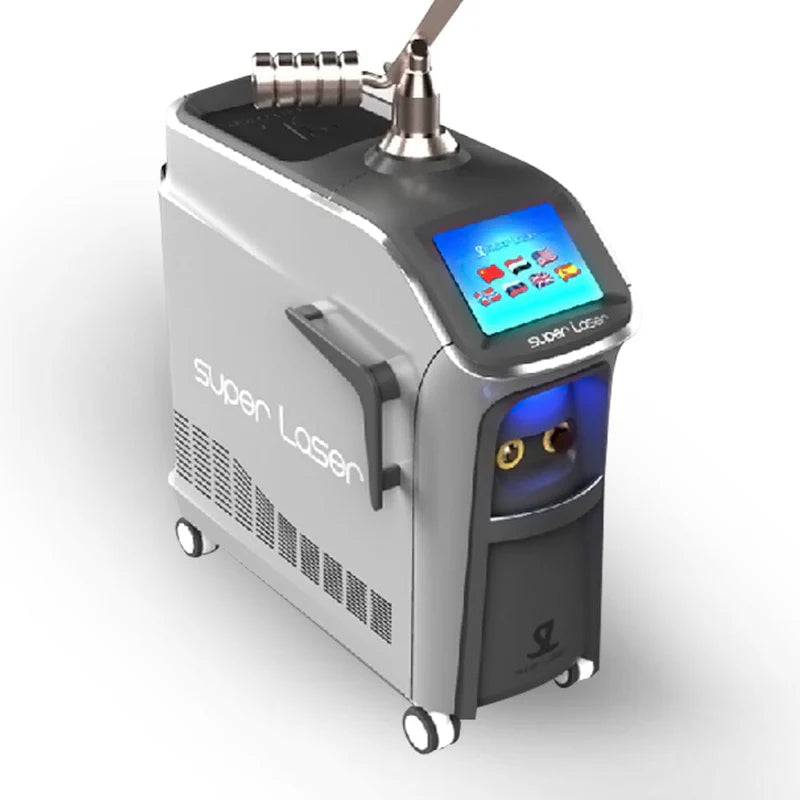

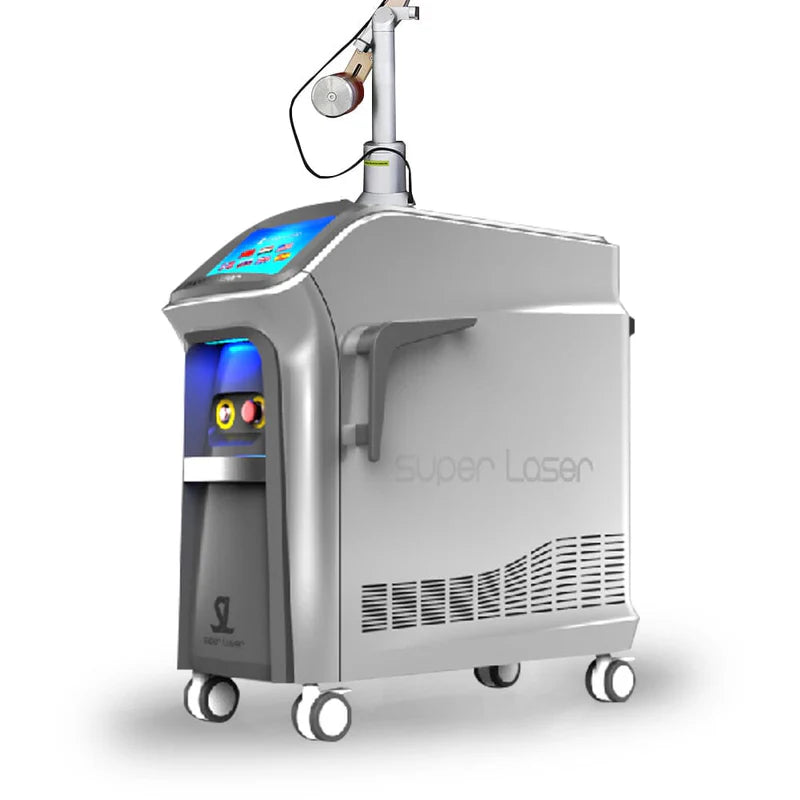

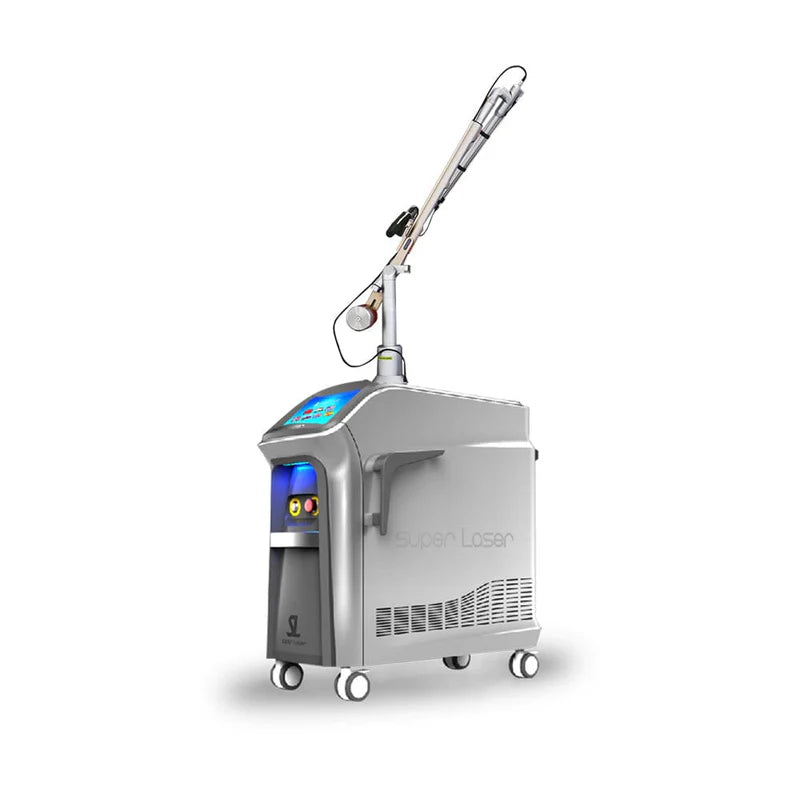

Nd YAG Beauty Machine Tattoo Removal Picosecond Laser – Model NY-607

Product Description:

The NY-607 Nd:YAG Picosecond Laser is a cutting-edge, WO Active Q-Switched Nd:YAG system engineered for precision tattoo removal, pigment correction, and advanced skin rejuvenation. Its ultra-short 500 ps pulse width leverages a mechanical shock-wave effect to shatter pigment particles into fine fragments that the body can naturally metabolize—minimizing thermal damage and enhancing safety.

Core Benefits & Educational Insights

• Picosecond Technology:

  • Generates mechanical photodisruption, fragmenting ink and melanin with minimal heat.

  • Reduces risk of post-inflammatory hyperpigmentation versus traditional nanosecond lasers.

  • Delivers faster clearance of complex pigments, even in multicolor tattoos.

• Versatile Treatment Modes:

  • SP (Short Pulse) Mode: Ideal for delicate work—100–1,000 mJ at 1064 nm; 50–500 mJ at 532 nm.

  • PTP (Photo-Thermal Pulse) Mode: Balances depth and energy—200–2,000 mJ (1064 nm); 100–1,000 mJ (532 nm).

  • LP (Long Pulse) Mode: High-energy impetus for stubborn pigment—up to 5,000 mJ at 1064 nm.

• Adjustable Spot Size (2–10 mm):

  • Enables both pinpoint precision for small lesions and broad coverage for larger tattoos or pigmented areas.

• High Peak Power (2,500 W):

  • Ensures sufficient fluence for deep dermal penetration and effective energy delivery.

• Multi-Wavelength Capability:

  • 1064 nm: Targets dark inks (black, blue) and deep dermal pigmentation.

  • 532 nm: Excels at removing red, brown, and orange pigments, plus superficial epidermal lesions.

  • Optional 755 nm Honeycomb Head: Enhances collagen stimulation for skin tightening.

  • Optional 1320 nm Head: Optimized for carbon peeling, brightening, and pore refinement.

Technical Specifications

• Laser Type: WO Active Q-Switched Nd:YAG

• Pulse Width: 500 ps (picosecond domain)

• Wavelengths: Standard 1064 nm & 532 nm; optional 755 nm & 1320 nm treatment heads

• Energy Range: 100–1,000 mJ selectable per pulse

• Frequency: 1–10 Hz, adjustable

• Spot Size: Ø 2–10 mm, stepless adjustment

• Power Supply: 220 V/110 V, 50/60 Hz

• Machine Power: 2,500 W

• Dimensions: 118 × 52 × 109 cm

• Weight: 110 kg

• Lifetime: Approx. 5 years of operation

• Warranty: 1 year

Clinical Applications

• Tattoo Removal:

  • Fragment multicolor tattoos—black, blue, red, green, brown, and yellow.

  • Effective on amateur and professional ink, including lip liner, eyeliner, and cosmetic brow tattoos.

• Pigment Correction:

  • Eradicates freckles, sunspots, age spots, café-au-lait macules, nevus of Ota, and post-inflammatory hyperpigmentation.

• Lesion Clearance:

  • Removes moles, congenital nevi (junctional, compound), and birthmarks with precision.

• Skin Rejuvenation & Brightening:

  • Carbon peel and 755 nm head stimulate collagen, tighten pores, smooth fine lines, and impart an even complexion.

• Acne Scar Therapy:

  • Disrupts scar tissue and promotes remodeling through micro-injury and subsequent collagen induction.

Why NY-607 Stands Apart

1. Super-Short Pulse Duration: Picosecond bursts deliver high peak power with minimal collateral heat, reducing downtime and risk.

2. Triple- & Quad-Wavelength Flexibility: Tailor treatments by swapping handpieces for the exact chromophore target.

3. “Top-Flat Hat” Beam Profile: Ensures uniform energy distribution across the spot, avoiding hotspots and guaranteeing consistent results.

4. Articulated-Arm Delivery: Korean-engineered 7-joint arm provides smooth, accurate handpiece positioning.

5. Intelligent Safety System: Real-time alarms for water flow, level, and temperature shield both equipment and patient.

6. Ergonomic, User-Friendly Interface: Intuitive touchscreen guides practitioners through protocols and parameter adjustments.

Educational Takeaways for Practitioners

• Mechanism of Action: Picosecond lasers rely on photoacoustic disruption—mechanical fragmentation—rather than heat alone, making them superior for multi-hued pigment removal and reducing thermal injury.

• Mode Selection: Understanding when to use SP vs. PTP vs. LP modes allows precision dosing for delicate facial work or high-fluence body areas.

• Wavelength Matching: Proper wavelength choice (e.g., 532 nm for vascular reds, 1064 nm for deep blacks) maximizes chromophore absorption and treatment efficacy.

• Optimizing Spot Size: Smaller spots concentrate energy for deep lesions; larger spots speed coverage for extensive tattoos or pigmented regions.

Empower your practice with the NY-607 Q-Switched Nd:YAG Picosecond Laser—the ultimate solution for safe, fast, and effective pigment removal and advanced skin rejuvenation. Whether you’re erasing a multicolor tattoo or revitalizing aging skin, the NY-607 delivers precision, versatility, and unmatched performance.
